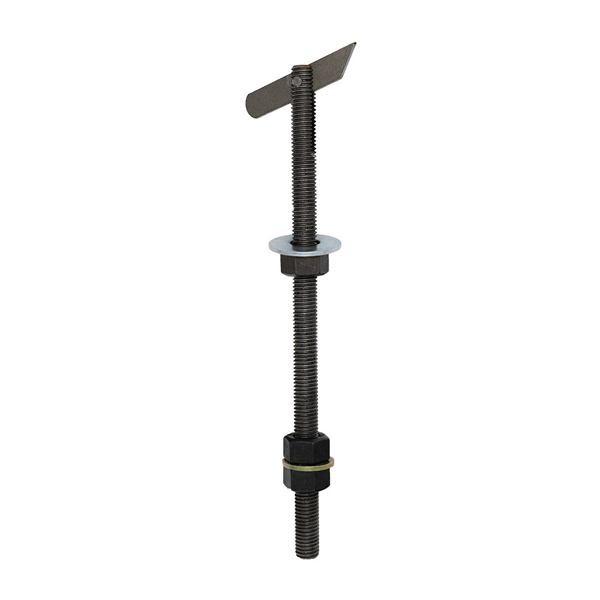

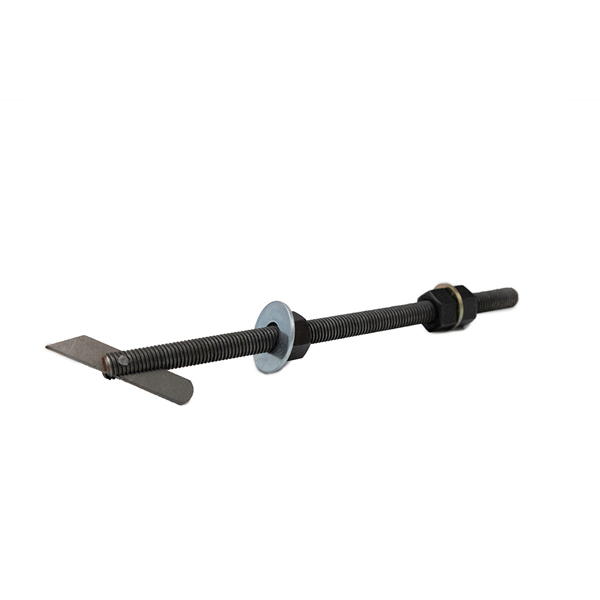

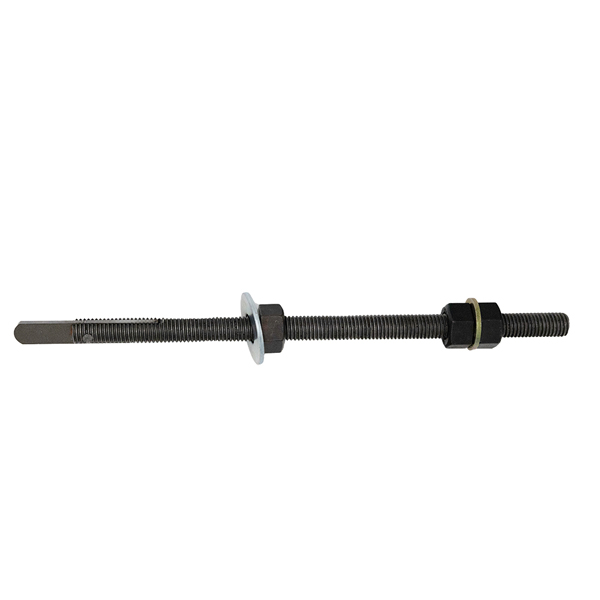

Standard Knife Anchor Bolts – Replaces j-bolts in Wood Structures
Price range: $445.00 through $8,900.00
Replaces J-Bolts in Wood Structures.
Governing Design Criteria
Grade B7 Threaded Rod: 125,000 PSI Tensile Strength
A553 Grade 2 Pin: 184,800 PSI Ultimate Yield Strength
Ultimate Design Capacity: 5,280 LBS Uplift
Meets of Exceeds Allowable Tension Loads of 4,250 for Wedge Anchors up to ¾” with Embedment Depth Up to 6-¾”
Replacing failed J-bolts without replacing the foundation
Cast-in-place J-bolts were the standard sill-plate connection in wood-framed construction for decades. In Arizona’s soil and moisture conditions they corrode, and corroding steel expands — up to five times its original diameter — which cracks and spalls the stem wall from the inside out. By the time the damage is visible at the surface, the connection between the framing and the foundation is already compromised.
Standard Knife Anchor Bolts are a retrofit answer to that problem. They install into the existing foundation, so the load path between sill plate and concrete is restored without pouring a new stem wall or lifting the structure.
Where these anchors are specified
- Stem wall repair — replacing corroded J-bolts where the original anchor has broken out the concrete.
- Seismic and high-wind retrofits — re-establishing uplift resistance on older homes built to earlier code cycles.
- Garage and crawl space framing — long unsupported wall runs where anchor spacing has failed or was never adequate.
- Pre-remodel upgrades — bringing an existing connection up to current requirements before new load is added.
Code compliance and engineering acceptance
The system exceeds ACI and ICRI criteria and uses ASTM A193 Grade B7 threaded rod — a heat-treated chromium-molybdenum alloy chosen for corrosion resistance as much as for strength. Because it is a repair to a structural connection, many Arizona jurisdictions ask for a letter from the engineer of record before sign-off; some require no permit at all. Confirm with your local building department before scheduling the work.
Ordering and lead time
Anchors ship direct from Tempe, Arizona, with typical delivery of five to eight business days. Contractors commonly price installed anchors at two times material cost or more, which is worth factoring into a bid before ordering quantity.
Not sure whether the knife anchor or the center plate anchor suits your connection? The knife anchor replaces J-bolts; the center plate anchor replaces tie-down and strap anchors. The Mini-Pack includes both for evaluation.
Frequently Asked Questions
It replaces cast-in-place J-bolts in wood structures. The anchor installs into the existing foundation, so the connection between sill plate and concrete is restored without pouring a new stem wall.
Ultimate design capacity is 5,280 lbs uplift. That meets or exceeds the allowable tension load of 4,250 lbs for wedge anchors up to three-quarter inch with embedment depth up to six and three-quarter inches.
The J-bolts and straps corrode, and corroding steel expands up to five times its original diameter, breaking out the concrete foundation wall from the inside. Damage is usually well advanced by the time it is visible at the surface.
No. These are retrofit anchors installed into the existing concrete, which is the point of the design. No new stem wall pour and no lifting of the structure is required.
The system exceeds ACI and ICRI criteria and is used nationwide. Because this is a repair to a structural connection, many Arizona jurisdictions ask for a letter from the engineer of record before sign-off, while some require no permit at all. Confirm with your local building department before scheduling the work.
Yes. Grade B7 rod is a heat-treated chromium-molybdenum low-alloy steel with a minimum tensile strength requirement of 125 ksi (860 MPa), yield 105 ksi (720 MPa), and maximum hardness of 35 HRC. The alloy is specified for corrosion resistance as much as for strength.
Orders ship direct from Tempe, Arizona. Average delivery is between five and eight business days.
Our clients report pricing installed bolts at two times material cost or more. It is worth factoring that into a bid before ordering quantity.
